Out of all the OBD2 codes you could get in your car, the P0560 code is one of the most unpredictable ones in terms of the damage it leaves on your vehicle. It seemingly has nothing to do with the powertrain or the transmission, yet it can even cause the vehicle to stall while driving.

Our team, therefore, did its best to keep you posted on the P0560 code meaning and give you some pointers as to how you can fix it. We’ll discuss everything from the potential reasons behind the code to ways of properly diagnosing and fixing it.

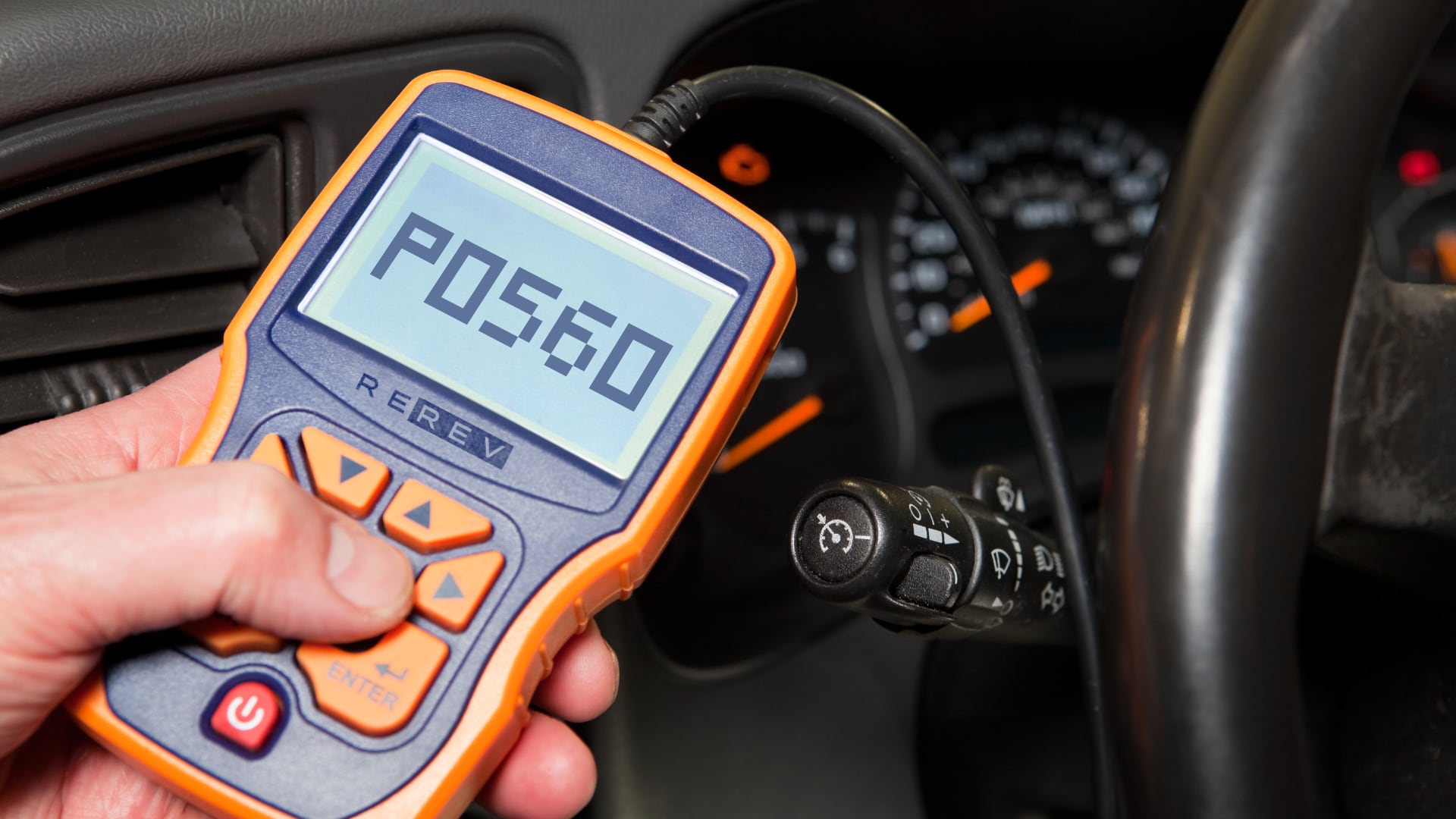

What does the P0560 code mean?

The P0560 code is associated with a fault in the battery voltage circuit. It indicates that there is a problem with the vehicle’s charging system, which may be caused by a failing battery, alternator, or other related components.

When this code is triggered, it can cause several problems, such as difficulty starting the engine, stalling while driving, and reduced power to electrical components.

What causes the P0560 code?

There are several possible causes of the code P0560, and it takes knowing about all of them to properly sort out the issue. With this in mind, here’s a list with some of the most probable causes that may have triggered the code in your car:

Faulty battery

A faulty battery is one of the most common causes of the P0560 code. A battery that is nearing the end of its life may not be able to hold a charge, causing voltage fluctuations that trigger the code.

Failed alternator

The alternator is responsible for charging the battery while the engine is running. If the alternator fails, the battery will not receive a charge, causing the P0560 code to appear.

Loose or corroded battery cables

Loose or corroded battery cables can cause voltage fluctuations that trigger the code. Make sure to check the battery cables for any signs of corrosion or looseness.

Failed voltage regulator

The voltage regulator is responsible for maintaining a consistent voltage output from the alternator. If the voltage regulator fails, it can cause voltage fluctuations that trigger the code.

Which car models does the P0560 code affect the most?

The P0560 code can affect any vehicle, but it’s more common in certain models. Vehicles that are more likely to experience this code include older vehicles with high mileage, vehicles that have been in accidents, and vehicles that are exposed to extreme weather conditions.

We’ve thoroughly scanned the driver complaint reports submitted to the NTHSA and here’s a list of cars that we find are more exposed to the code than others:

  • Honda Civic: The Honda Civic is a popular compact car that has been known to experience battery and alternator issues, which can result in the P0560 code being triggered.
  • Toyota Camry:: The Toyota Camry is generally a reliable car, but some Camry models have been known to experience battery and charging system problems that can cause this code to appear.
  • Ford F-150: The Ford F-150 is one of the most popular pickup trucks in the United States. However, some models have had issues with their batteries and alternators, which can cause the code to be triggered.

How to diagnose the P0560 code

Diagnosing the P0560 code mostly requires specialized tools and equipment, but you can simply use an OBD2 scanner and a voltmeter to pinpoint some of the most common causes of the code, so here’s what you can do:

Check the battery

The first step in diagnosing the P0560 code is to check the battery. Use a voltmeter to measure the battery’s voltage. If the voltage is low, charge the battery and retest. If the battery cannot hold a charge, it may need to be replaced.

Test the alternator

If the battery is fully charged and still triggering the code, the next step is to check the alternator. Use a multimeter to measure the alternator’s output voltage. If the voltage is low, the alternator may be failing and need to be replaced.

Inspect the battery cables

Loose or corroded battery cables can cause voltage fluctuations that trigger this code. Check the battery cables for any signs of corrosion or looseness. Tighten or replace the cables if necessary

How to fix the P0560 code

Fixing the P0560 code will depend on the underlying cause. Below are some of the potential fixes for each cause of the code:

Replace or repair the battery

In case your car’s battery is failing, it will need to be replaced to fix the code and clear it permanently. You can also check the battery’s voltage and look for corrosion on the terminals, since it still may be possible to repair the damage and save your battery.

Replace the alternator

If the alternator is failing, it will need to be replaced. Usually, an alternator replacement will set you back for around $100 to $300 and it depends on the model of your vehicle and manufacturer’s specifications.

Replace the voltage regulator

The voltage regulator is another component that may fail and cause this code to trigger, which is why replacing it is your best option in such a situation. The cost of a new voltage regulator can be anywhere from $50 to $150 on average, so it’s much more convenient than replacing a battery or an alternator.

Seek professional help

If you’re unsure how to diagnose or fix the P0560 code, it’s best to seek professional help. A skilled mechanic will be able to diagnose and fix the problem quickly and efficiently.

How to prevent the P0560 code

Preventing the P0560 code requires regular maintenance and care of your vehicle’s battery and charging system. Below are some tips to help prevent the code from appearing:

  • Perform regular battery maintenance
  • Replace the battery when needed
  • Check the battery’s charging system

By making use of all the mentioned ways of preventing this code, you can ensure that you won’t have to deal with it again anytime soon and keep the charge of your battery aligned with specified requirements.

Our take

Since the code P0560 can be a pretty bad one if your battery depletes so much that your vehicle begins to stall, your best move is to immediately fix it after reading the code. We know how tough it can be to keep in mind all the consequences of different OBD2 codes, so hopefully this guide delivers when it comes to diagnosing and fixing this one.

What does the P0560 code mean?

The code P0560 indicates a problem with your car’s charging system which may lead to the battery being improperly charged or cause issues with the voltage regulator system.

How can I diagnose the problem behind this code?

You can diagnose the problem behind the code P0560 by inspecting the battery and its terminals, checking the voltage regulator and alternator, or using a voltmeter to read the charge capacity of the battery.

Should I drive when the code P0560 is active?

We would strongly recommend that you don’t drive your car with the code P0560 since it could lead to issues with the electrical system and battery charge.
